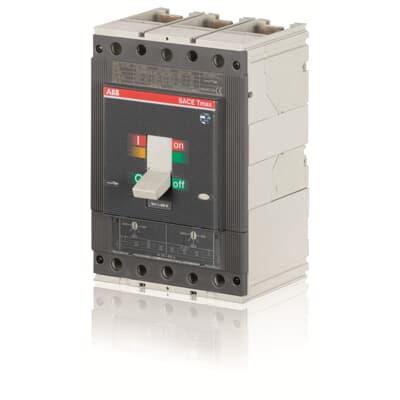

1SDA060206R1 T6H 630 TMA 630A 70KA 3P Ter. Man. Korumalı Şalter (1SDA060206R1)

T6H 630 TMA 630A 70KA 3P Ter. Man. Korumalı Şalter

Ürün Ana Türü: SACE Tmax T

Ürün adı: Moulded Case Circuit Breaker

Ürün Türü: Automatic Circuit Breaker

Şuna Uygun: T6

Ürün Sınıfına Uygun: Moulded Case Circuit Breakers

Version: F

Teknik:

Electrical Durability:
7000 cycle
60 cycles per hour

Mechanical Durability:
20000 cycle
120 cycles per hour

Kutup Sayısı: 3

Power Loss: at Rated Operating Conditions per Pole 30.6 W

Anma Akımı (I_n): 630 A

Rated Impulse Withstand Voltage (U_imp): 8 kV

Rated Insulation Voltage (U_i): 1000 V

Nominal Çalışma Gerilimi:
690 V AC
750 V DC

Rated Service Short-Circuit Breaking Capacity (I_cs):
(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(690 V AC) 19 kA

Rated Short-time Withstand Current Low Voltage (I_cw): for 1 s 7.6 kA

Rated Ultimate Short-Circuit Breaking Capacity (I_cu):
(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(690 V AC) 25 kA
(250 V DC) 2 Poles in Series 70 kA
(500 V DC) 2 Poles in Series 50 kA

Rated Uninterrupted Current (I_u): 630 A

Release: TMA

Yayın Türü: TM

Short-Circuit Performance Level: H

Standartlar: IEC

Sub-type: T6

Terminal Connection Type: Fixed Circuit-Breakers

Front Test Voltage Max (U_test): 3500 V
