Order Code US and Canada
PSE300-600-70
ABB Type Designation
PSE300-600-70
Adjustable Rated Motor Current Ie
30 ... 100 %
Ambient Air Temperature
Operation -25 ... +60 °CStorage -40 ... +70 °C
Ambient Temperature
-25 ... 60 °C
Analog Outputs
4…20 mA
By-pass Signal Relay
Yes
CN8
8537 10 91
Communication
FiledBusPlug(Optional)
Connecting Capacity Control Circuit
Rigid 1 x 2.5 mm²Rigid 2 x 1.5 mm²
Connecting Capacity Main Circuit
Hole Diameter 10.2 mmWidth and Thickness 20x5 mm
Connecting Capacity Supply Circuit
Rigid 1 x 2.5 mm²
Conventional Free-air Thermal Current (Ith)
Signal Relays 3 A
Current Limit Function
1.5 ... 7xIe
Current Range
90.6 ... 302 A
Customs Tariff Number
85371091
Degree of Protection
IP00
EAN
7320500400722
eClass
V11.0 : 27370907
E-Number (Norway)
4189713
EPLAN Product Categorization
Main Product WITH Accessories
ETIM 4
EC002572 - Electronic motor control and protection device
ETIM 5
EC002572 - Electronic motor control and protection device
ETIM 6
EC002572 - Motor management device
ETIM 7
EC000640 - Soft starter
ETIM 8
EC000640 - Soft starter
Fault Signal Relay
Yes
Global Commercial Alias
PSE300-600-70
Initial Voltage During Start
30 ... 70 %
Integrated Electronic Overload
Yes
Invoice Description
SOFTSTARTER#PSE300-600-70
Minimum Order Quantity
1 piece
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time
10
Object Classification Code
Q
Order Multiple
1
Overload Protection
Build-in electronic overload protection
Overload Signal Relay
Yes
Package Level 1 Depth / Length
600 mm
Package Level 1 EAN
7320500400722
Package Level 1 Gross Weight
14.7 kg
Package Level 1 Height
310 mm
Package Level 1 Units
1 piece
Package Level 1 Width
260 mm
Power Consumption (@Pcons)
23 W
Power Loss
18 W
Product Main Type
PSE300

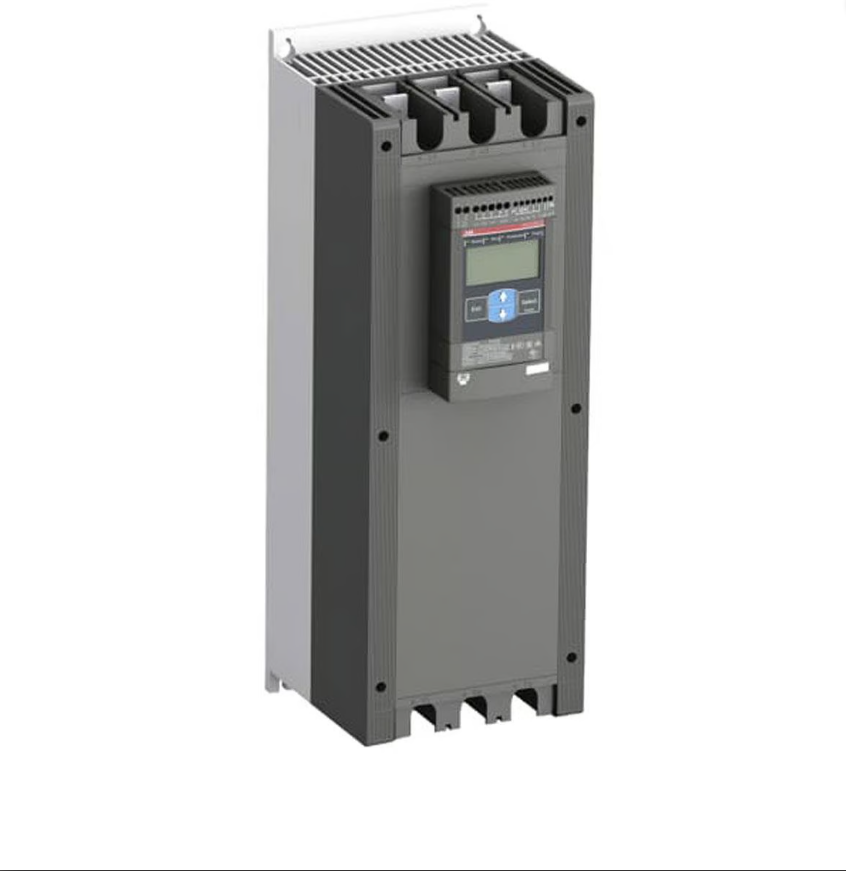

Product Name
Softstarter
Product Net Depth / Length
236.5 mm
Product Net Height
550 mm
Product Net Weight
13.9 kg
Product Net Width
190 mm
Ramp Time
0 ... 30 second [unit of time]1 ... 30 second [unit of time]
Rated Control Circuit Voltage (Uc)
DC Operation 24 V
Rated Control Supply Voltage (Us)
100 ... 250 V AC
Rated Frequency (f)
50/60 HzMain Circuit 50 / 60 Hz
Rated Operational Current - In-Line Connection (Ie)
300 A
Rated Operational Current AC-15 (Ie)
(250 V) 1.5 A
Rated Operational Power - In-Line Connection (Pe)
(230 V) 90 kW(400 V) 160 kW(500 V) 200 kW
Rated Operational Voltage
208 ... 600 V AC
RoHS Date
1042 1
RoHS Status
Following EU Directive 2002/95/EC August 18, 2005 and amendment
Run Signal Relay
Yes
Selling Unit of Measure
piece
Service Factor Percentage
100 %
Short Description
SOFTSTARTER#PSE300-600-70
Signal Indication Completed Start Ramp (LED)
Green
Signal Indication Fault (LED)
Red
Signal Indication Protection (LED)
Yellow
Signal Indication Ramping Up/Down (LED)
Green
Signal Indication Ready to Start/Standby ON (LED)
Green
Signal Indication Running R (LED)
Green
Starting Capacity at Maximum Rated Current Ie
4xIe for 10s
Step Down Voltage Special Ramp
No %
Switch for Inside Delta Connection
No
Switch for Kick Start (Kick)
Yes
Terminal Type
Main Circuit: Bars
Tightening Torque
Control Circuit 0.5 N·mMain Circuit 28 N·mSupply Circuit 0.5 N·m
Trip Class
class 30class 10class 10Aclass 20
Type of Start
normal
UNSPSC
39121521
WEEE B2C / B2B
Business To Business
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
ETIM 9
EC000640 - Soft starter
EPLAN Data Portal Status
Available but Not EDS Compliant
