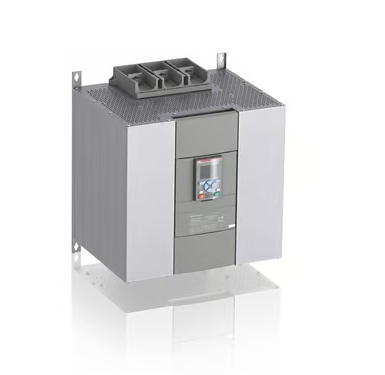

PSTX720-600-70 400 KW SOFTSTARTER
PSTX720-600-70 400 KW SOFTSTARTER
ABB

PSTX720-600-70 400 KW SOFTSTARTER (1SFA898118R7000)

Marka : ABB
İndirim Oranı : %60 İndirim
Fiyat : €12.613,00  + KDV
İndirimli : €5.045,20  + KDV
TL Fiyat : ₺187.206,69(₺37.441,34 + KDV)
Favorilere Ekle
İstek Listeme Ekle
Fiyat Düşünce Haber Ver
Gelince Haber Ver



  • Veri Sayfası, Teknik Bilgi:
    1SFC132012C0201
  • Talimatlar ve Kılavuzlar:
    1SFC132081M0201
  • CAD Dimensional Drawing:
    2CDC001079B0201
  • Wiring Diagram:
    N/A

  • Technical

  • Nominal Çalışma Gerilimi:
    208 ... 600 V AC
  • Rated Control Supply Voltage (Us):
    100 ... 250 V AC
  • Rated Control Circuit Voltage (Uc):
    24 V DC
  • Nominal Frekans (f):
    50/60 Hz
    Main Circuit 50 / 60 Hz
  • Rated Operational Power - In-Line Connection (Pe):
    (230 V) 200 kW
    (400 V) 400 kW
    (500 V) 500 kW
  • Nominal Çalışma Akımı - Hat İçi Bağlantı (Ie):
    720 A
  • Rated Operational Power - Inside Delta Connection:
    at 230 V 355 kW
    at 400 V 710 kW
    at 500 V 880 kW
  • Rated Operational Current - Inside Delta Connection:
    1247 A
  • Hizmet Faktörü Yüzdesi:
    100 %
  • Overload Protection:
    Built-in electronic overload protection
  • Integrated Electronic Overload:
    Yes
  • Adjustable Rated Motor Current Ie:
    30 ... 100 %
  • Starting Capacity at Maximum Rated Current Ie:
    4xIe for 10s
  • Ramp Time:
    1 ... 120 second [unit of time]
  • Initial Voltage During Start:
    10 ... 99 %
  • Step Down Voltage Special Ramp:
    100 ... 10 %
  • Current Limit Function:
    1.5 ... 7.5 xle
  • Switch for Inside Delta Connection:
    Yes
  • Run Signal Relay:
    Yes
  • By-pass Signal Relay:
    Yes
  • Fault Signal Relay:
    Yes
  • Overload Signal Relay:
    Yes
  • Analog Çıkışlar:
    0…10 V, 0…20 mA, 4…20 mA
  • Signal Indication Ready to Start/Standby ON (LED):
    Green
  • Sinyal göstergesi çalışıyor R (LED):
    Green
  • Signal Indication Protection (LED):
    Yellow
  • Signal Indication Fault (LED):
    Red
  • İletişim:
    Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP
  • Koruma Derecesi:
    IP00
  • Terminal Türü:
    Main Circuit: Bars
  • Connecting Capacity Control Circuit:
    Rigid 1 x 2.5 mm²
  • Connecting Capacity Supply Circuit:
    Rigid 1 x 2.5 mm²
  • Sıkma Torku:
    Main Circuit 45 N·m
  • Ürün Ana Türü:
    PSTX720
  • Function:
    Auto phase sequence detection
    Automatic restart
    Current limit
    Current limit ramp
    Dual current limit
    Dynamic brake
    Electricity metering
    Electronic overload Time-to-cool
    Emergency mode
    Event log
    Full voltage start
    Jog with slow speed, forward and reverse
    Keypad password
    Kick start
    Limp mode with two-phase motor control if one set of thyristors is shorted
    Motor heating
    Pre-start function
    Pump cleaning
    Real time clock
    Sequence start
    Soft start with torque control
    Soft start with voltage ramp
    Soft stop with torque control
    Soft stop with voltage ramp
    Stand still brake
    Start reverse (external contactors)
    Thyristor runtime measurement
    Torque limit
    Voltage sags detection

  • Dimensions

    Ürün Net Genişliği:

  • 435 mm
  • Ürün Net Yüksekliği:
    493 mm
  • Ürün Net Derinlik / Uzunluk:
    369 mm
  • Ürün Net Ağırlığı:
    46.5 kg



KW Değeri
400 KW
